Comet Bharat
- WORKING HEIGHT 16 m
- MAX. LATERAL OUTREACH 6-7,5 m
- BASKET FLOOR 14 m
- BRIDGING HEIGHT 6 m
- MAX. BASKET CAPACITY 200 Kg – 2 persone
- HYDRAULIC OUTRIGGERS n.4
- ROTATION 360° continuous
- CONTROLS 100% HYDRAULIC LOW PRESSURE
- MINIMUM GVW PTT 2,2 ton

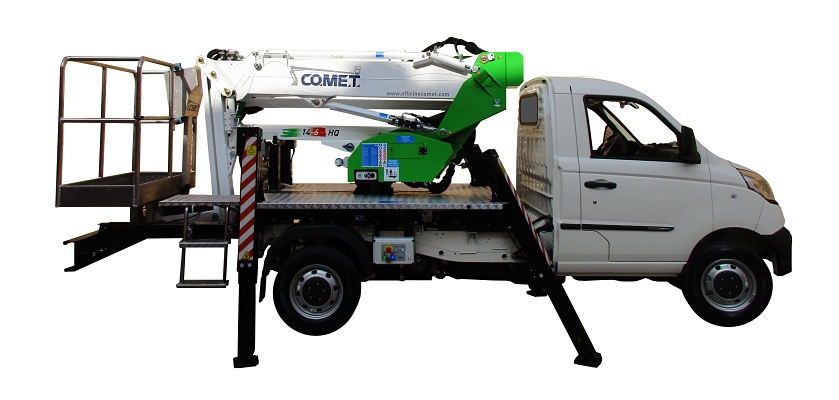

- Aerial platform made of high strength steel for boom maximum rigidity and maximum safety while working.
- The subframe with the aim to couple the platform with truck chassis.
- Hydraulic oil tank integrated in the subframe and easy to access.
- Stability guaranteed by No.4 outriggers in shape type, each pair is made by two hydraulic jacks with double effect valve connected to the main hydraulic circuit.
- Double purpose turret for boom support and rotation. One hydraulic engine coupled with one reducer allows 360° continuous rotation on fifth wheel. One rotating joint, assembled inside the turret, allows movements without hose twisting.
- Double pantograph to lift the platform without modifying the basket position in respect to the fifth wheel coupling center.
- he maximum height of the pantograph coincides with the maximum bridging height. The pantograph is madeof 2 booms connected through a head with simultaneous movements.
- The telescopic boom is made of 2 elements (1 fixed + 1 telescopic extension). Hoses and pipes are positioned inside the boom structure for maximum protection against damages or accidental fall of tools, etc. The telescopic boom allows vertical and horizontal movements.
- Articulated boom (JIB) allows to clear obstacles in the working area. It is positioned at the end of the telescopic boom and gives the possibility even to work at a height in unreachable working position.
- The basket is made to support and protect the operators. The aerial platform can be moved by means of controls positioned on the basket.
- 100% hydraulic controls with proportional system in low pressure in the basket (25 BAR only) to allow gradualand accurate movements. The hydraulic system in low pressure guarantees a long-lasting life to the platform with maintenance costs reduced at minimum.
- The steel structure and the booms are made of high strength steel to grant great stability to the whole platform.

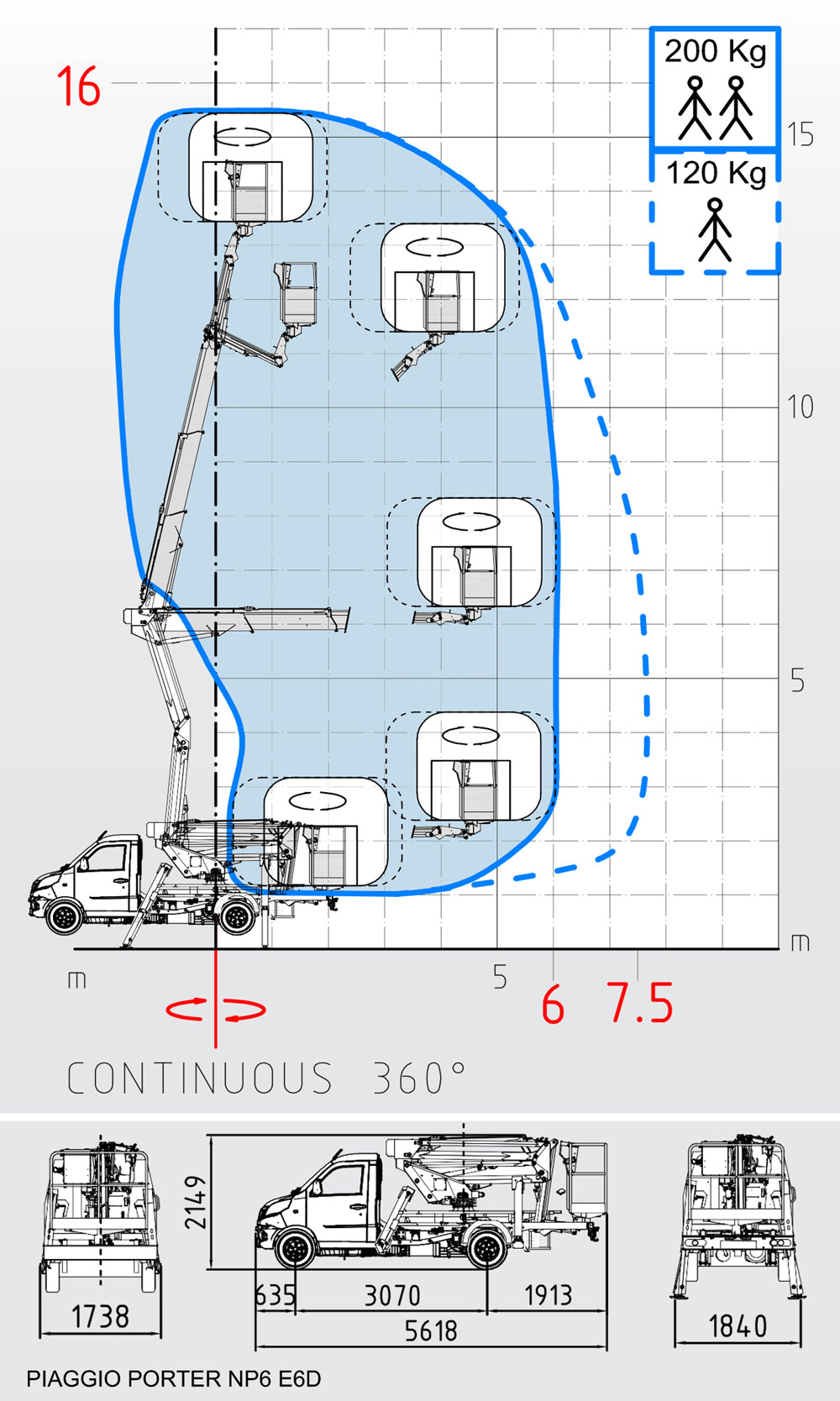

- Moment limiting device: Lateral outreach up to 6m with 200kg (2 pers.) in the basket and lateral outreach up to 7.5m with 120kg (1 pers.)
